Silicone Resin Coated Heat Resistant Wire Sleeve High Temperature

    Buy cheap Silicone Resin Coated Heat Resistant Wire Sleeve High Temperature from wholesalers

    Buy cheap Silicone Resin Coated Heat Resistant Wire Sleeve High Temperature from wholesalers
    • Buy cheap Silicone Resin Coated Heat Resistant Wire Sleeve High Temperature from wholesalers

    Silicone Resin Coated Heat Resistant Wire Sleeve High Temperature

    Ask Lasest Price
    Brand Name : HYH Tech
    Model Number : HYH-080
    Certification : RoHS, REACH, SGS, ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000000 m per month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

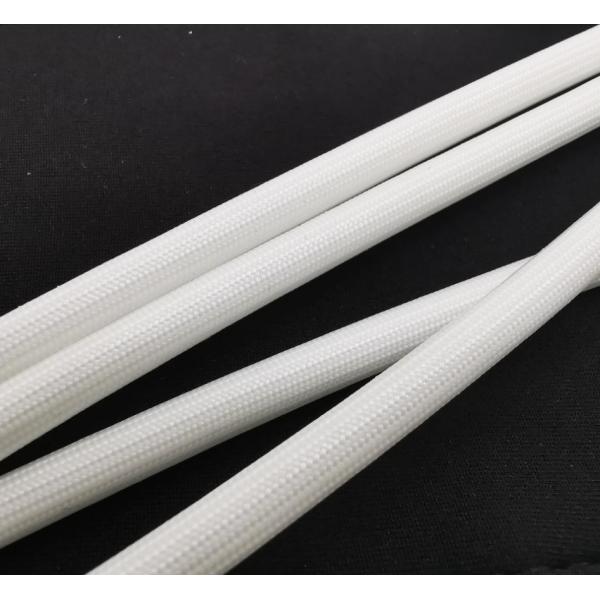

    Silicone Resin Coated Heat Resistant Wire Sleeve High Temperature

    Coated Silicone Resin Heat Resistant Wire Sleeve High Temperature


    Description:


    • [PARAMETER] Material: Alkali-free Fiberglass; Length: 5 Meter / 16.4 Feet; Inner Diameter: 3mm; Thickness: 0.18mm; Working Temp Range: –60℃~+600℃; Working Voltage: 500V~800V; Flame Resistance: VW-1.
    • [FEATURE] This heat sleeve fiberglass are for high temperature applications, also, it keeps wire neat and organized.
    • [MADE] This product is made of alkali-free fiberglass. Then coated with a small amount of binder. Lastly, process the pipe under a high temperature.
    • [APPLICATION] The heat shield tubing is mainly applied to insulate and heat equipment, such as motor, engine, plug wire, fuel lines, decorative light, etc.
    • [NOTE] Electrical wires should never be hot. Should increase the gauge of wire if you are exceeding the recommended load of that wire. This product would make the wire get hot by not letting it cool and might melt the insulation on said wire.

    Specification
    item
    value
    Working temperature
    -60 C~ 600 C
    Rated voltage
    1.2KV / 1.5V / 2.5KV / 4KV / 7KV / 10KV
    Uses
    This product is widely used in commercial electronics, household appliances insulation, electronic transformers, automotive wiring
    harness, energy-saving lamps, electronic equipment, equipment, internal cable protection and insulation treatment.
    Color
    white
    Type
    Insulation tube


    Datasheet:


    Part No.I.D.(I)Wall thickness(t)Packing (L)
    HYH-FG-00330.2100 m/roll
    HYH-FG-00440.3100 m/roll
    HYH-FG-00550.3100 m/roll
    HYH-FG-00660.3100 m/roll
    HYH-FG-00770.35100 m/roll
    HYH-FG-00880.3550 m/roll
    HYH-FG-010100.3550 m/roll
    HYH-FG-012120.3550 m/roll
    HYH-FG-015150.4350 m/roll
    HYH-FG-018180.4350 m/roll
    HYH-FG-020200.4350 m/roll


    FAQ:


    Q1. What is your terms of packing?
    A: Usually, we pack the sleeves on a spool with 100-500 meter as your request. Then we put the spools into master cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

    Q2. What is your terms of payment?
    A: T/T 100% in advance. if your order is big, the payment term could be negotiable.

    Q3. What is your terms of delivery?
    A: FOB, CFR, CIF, DDP.


    Q4. What is your price term?

    A: FOB Shenzhen for order value over USD5,000, if less than USD5,000 the term is EX Works.

    Q5. How about your delivery time?
    A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Urgent orders can provide overtime production.
